Circuit Diagram - TW Communicator 2/4/160 - RX section

The diagram above was scanned from an original document.

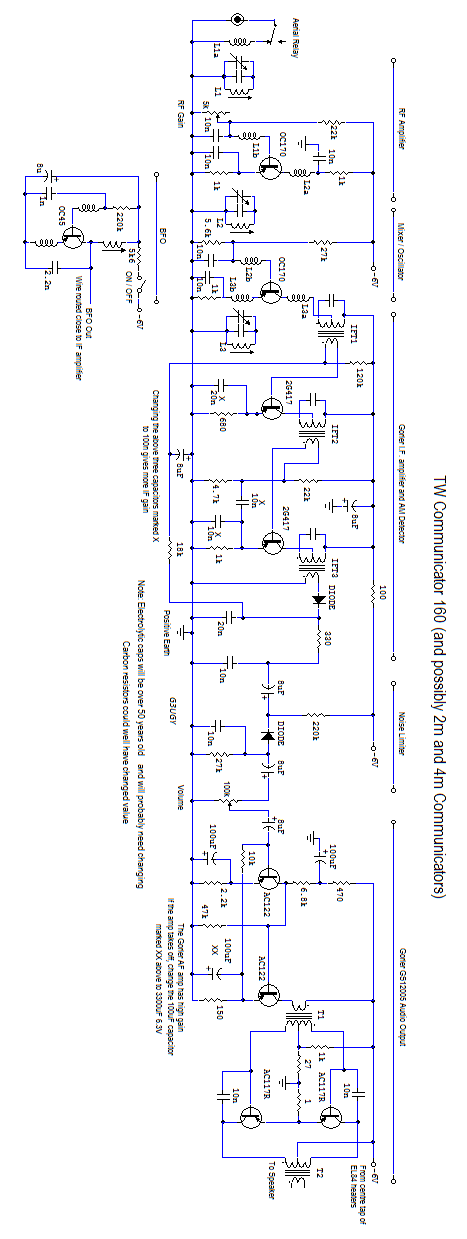

The circuit diagram below is provided courtesy of John G3UGY. I have had to fit it on the page ‘sideways’ in order to maintain clarity and detail.
